• SLP5 Triple Wavelength Loss Test Kits with Data Storage



Single-Mode Loss Test Kits with TRM® 2.0 Reporting Software

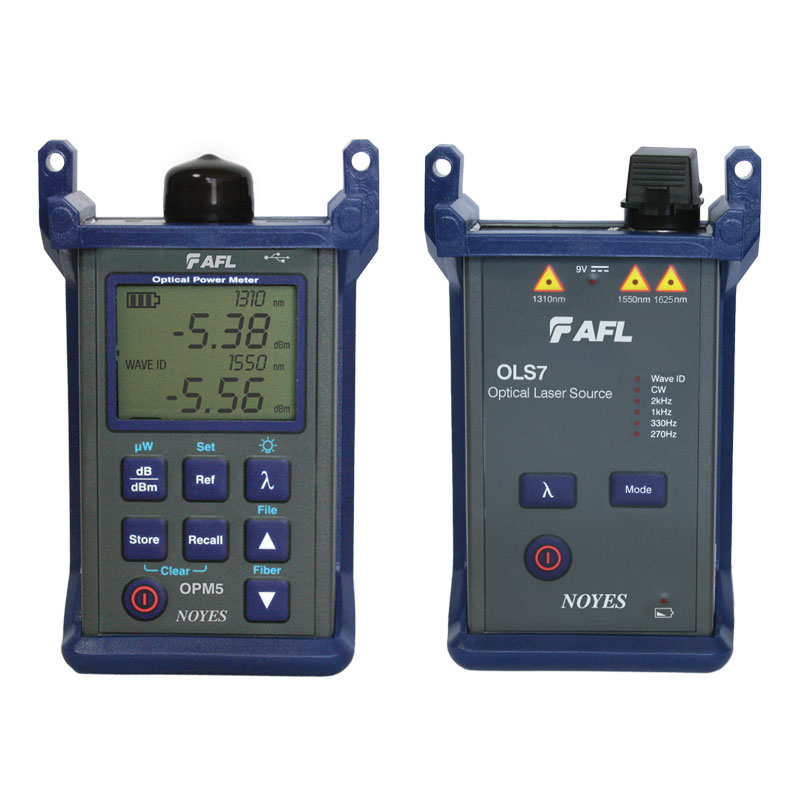

SLP5 (single-mode loss test kits) are rugged kits for loss testing and certifying fibre networks to industry standards. Each SLP5 kit includes a triple-wavelength laser source plus OPM5 optical power meter. The OPM5's backlit display is easily viewed in both dimly lit and direct sunlight environments. Interchangeable adapters connect to common optical network interfaces and provide easy access for cleaning launch and receive ports.


OLS7 Triple Wavelength Laser Sources are single-port laser light sources designed for performing insertion loss measurements on single-mode fibre optic links. Capable of transmitting highly stabilised output (single, dual, or triple wavelength), OLS7 ensures fast and accurate loss test results per current TIA/EIA requirements.

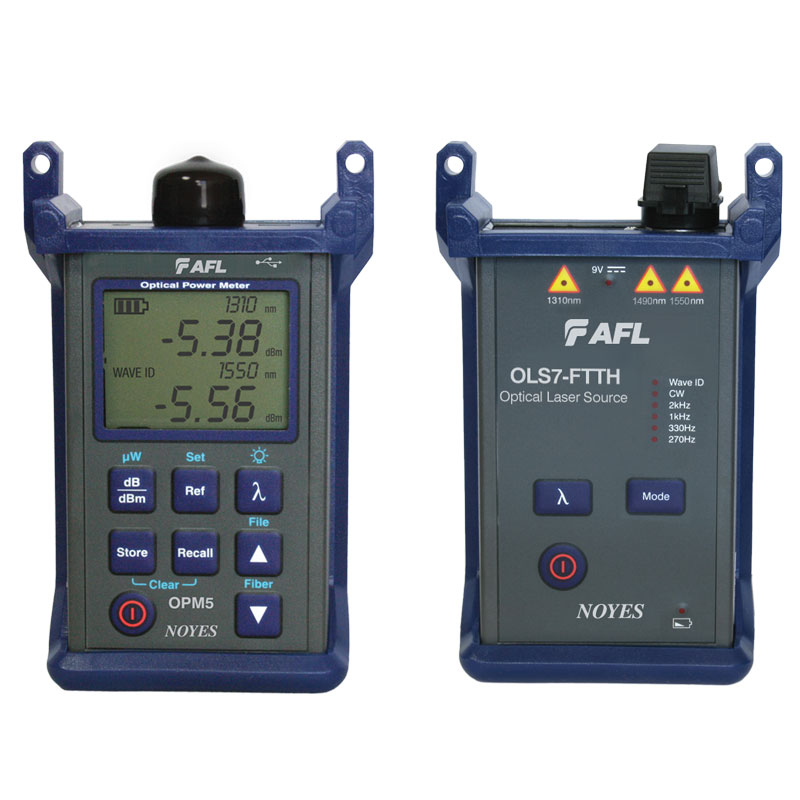

OLS7-FTTH: Designed for testing FTTH networks at 1310, 1490, and 1550 nm wavelengths.

OLS7-FTTx: Designed for testing FTTx networks at 1310, 1490, and 1625 nm wavelengths.

OLS7-3: Offers 1310, 1550, and 1625 nm wavelengths for testing applications such as Telecom and CATV.


OPM5 Optical Power Meter provides accurate measurements, reference storage for each calibrated wavelength, detects multiple test tones for fibre identification, and provides in-unit data storage. The simple to use interface allows for easy separation of test results into files. Integrated file management provides easy access to results and keeps cable/job results separated for fast customer report generation. Quickly transfer test results to PC via USB interface.


Automatic Wavelength Identification Significantly Increases Efficiency

Standard Wave ID feature automatically detects and sets the receive wavelength(s), preventing setup and measurement errors. It significantly increases efficiency and reduces technician errors, saving test time by eliminating the need to test each wavelength individually.


Test Results Storage, Transfer, and Post Processing with TRM® 2.0

OPM5 File Management system allows technicians to organise test results into multiple files.  Stored OPM results may be transferred to PC via USB port for viewing, analysis, and professional report generation using the included Windows® compatible TRM® 2.0 Basic Test Results Manager software.  TRM® 2.0 allows users to apply standards-based rules and create comprehensive certification reports complete with Pass/Fail results and calculated headroom.


Key Specifications


OLS7 Single-mode Laser Light Source


  • OLS7-FTTH Optical Source Wavelengths: 1310, 1490, and 1550 nm
  • OLS7-FTTx Optical Source Wavelengths: 1310, 1490, and 1625 nm
  • OLS7-3 Optical Source Wavelengths: 1310, 1550, and 1625 nm
  • Output connector: FC, SC, ST, LC switchable
  • Test Tones: 2 kHz, 1 kHz, 330 Hz, 270 Hz


OPM5-4D Optical Power Meter


  • Detector: Hi-Power InGaAs
  • Calibrated Wavelengths: 850, 980, 1310, 1490, 1550, 1625 nm
  • Measurement units: db, dBm, µW


Ordering Information


Model Number: SLP5-FTTH-yy (yy = FC, SC, ST, or LC)

The SLP5-FTTH combines one (1) OLS7-FTTH (1310, 1490, 1550 nm) Source and one (1) OPM5 Power Meter (High Power Option).


Model Number: SLP5-FTTx-yy (yy = FC, SC, ST, or LC)

The SLP5-FTTH combines one (1) OLS7-FTTH (1310, 1490, 1550 nm) Source and one (1) OPM5 Power Meter (High Power Option).


Model Number: SLP5-7-yy (yy = FC, SC, ST, or LC)

The SLP5-7 combines one (1) OLS7-3 (1310, 1550, 1625 nm) Source and one (1) OPM5 Power Meter (High Power Option).


OLS7 Accessories and Connector Adapters




FC adapter


SC adapter


ST adapter


LC adapter


Universal flip-top dust cap for UCI outputs


100-240 VAC to 9 VDC


OPM5 Accessories




FC adapter


SC adapter


ST® adapter


LC adapter


AC Adapter 100-240 VAC to 9 VDC


Cable, USB-MINI B connect to PC
